    A Comparison of Color Computation in RGB versus in Spectral Space

    This report is unfortunately not available in html but only scanned from paper... The readability is thus poor, if you are interested in the original paper email me.

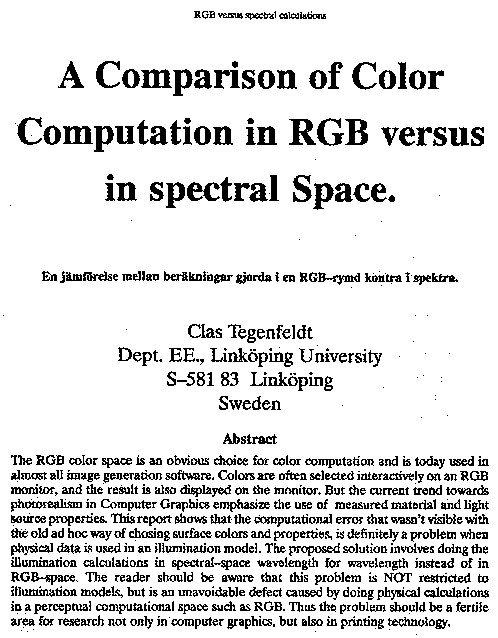

    1
    2

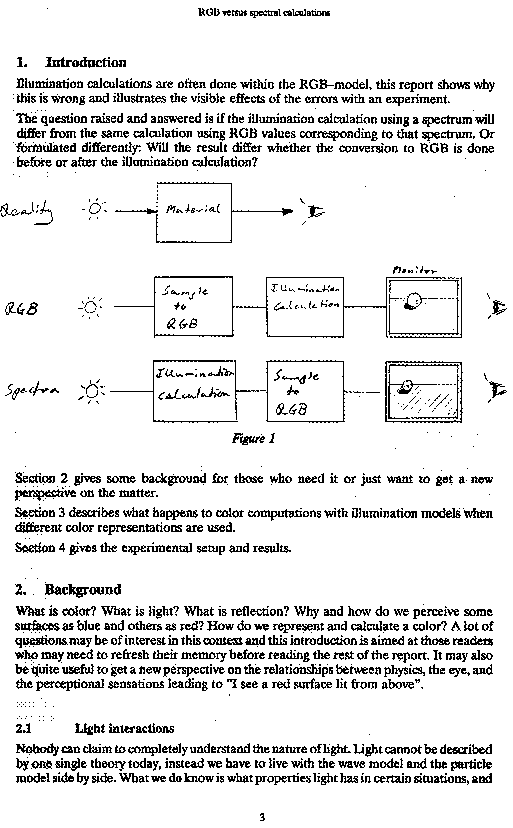

    3

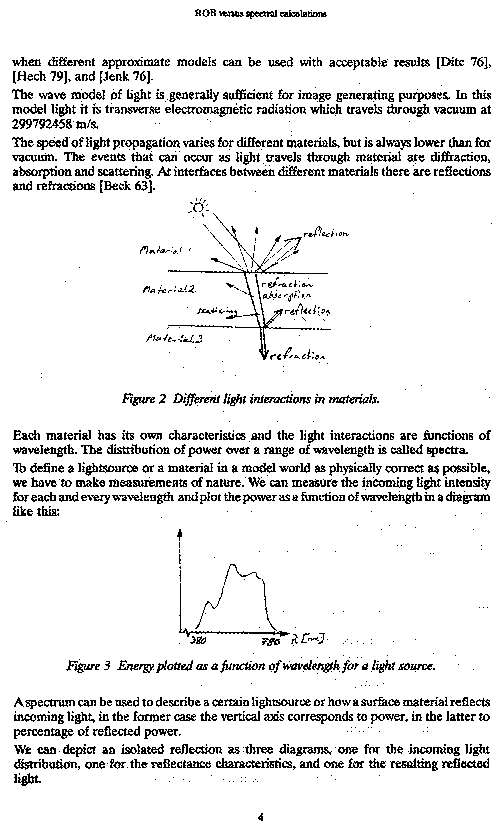

    4
    5
    6
    7
    8
    9

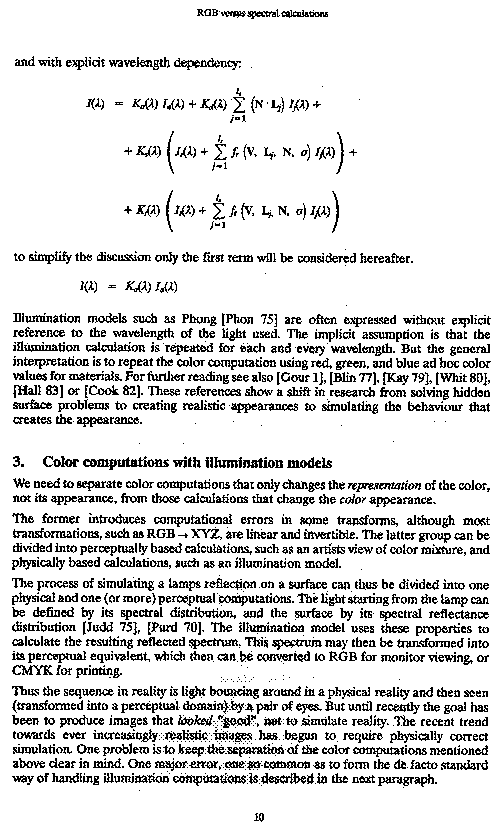

    10

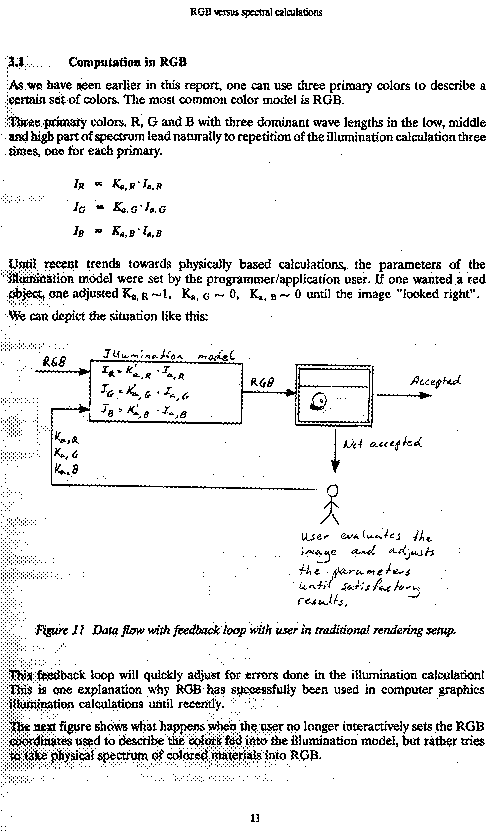

    11

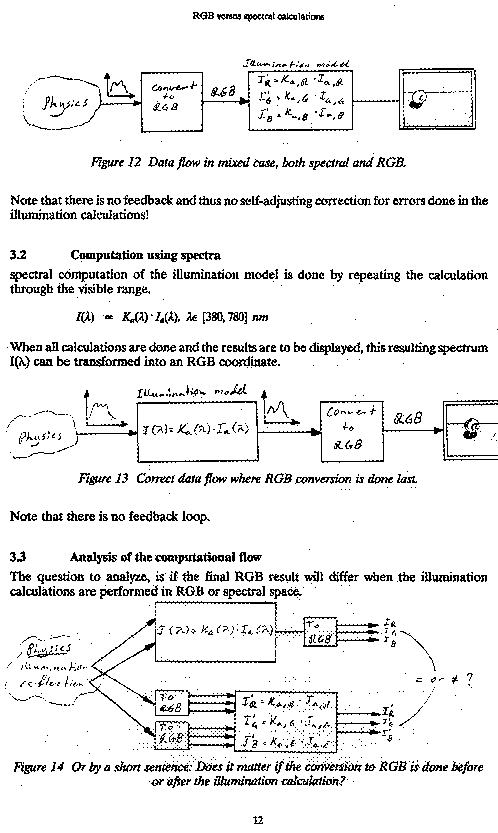

    12

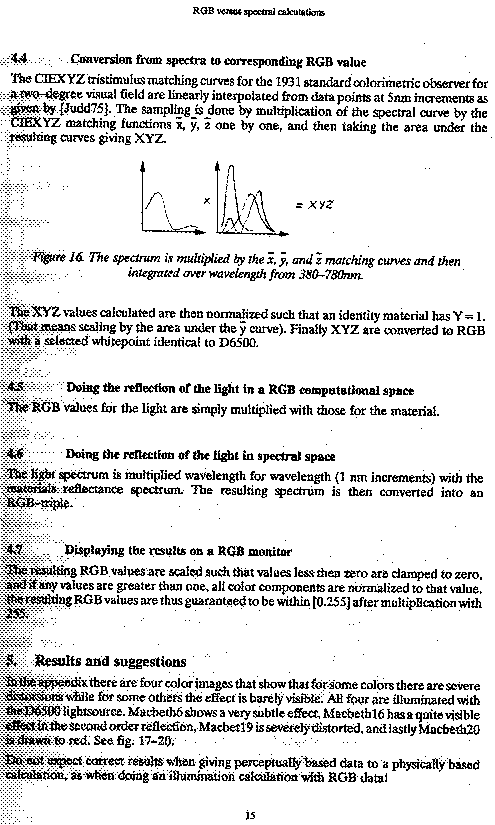

    13

    Appendix

    Below each figure the corresponding RGB value for the four partitions are shown, from upper left to lower right.
    +---------+-----------+
|   RGB   |   RGB^2   |
+---------+-----------+
| Spectra | Spectra^2 |
+---------+-----------+
    Appendix
    Figure 17. "Macbeth6"                      Figure 18. "Macbeth16"
 75,128, 94         22, 65, 35             207,145, 11         171, 83,  0
 67,135,103         16, 73, 44             186,150, 12         137, 87,  0
    Appendix
    Figure 19. "Macbeth19"                     Figure 20. "Macbeth20"
252,217,204        253,188,166             166,142,137         110, 80, 75
225,227,224        201,205,200             148,149,150          87, 88, 89

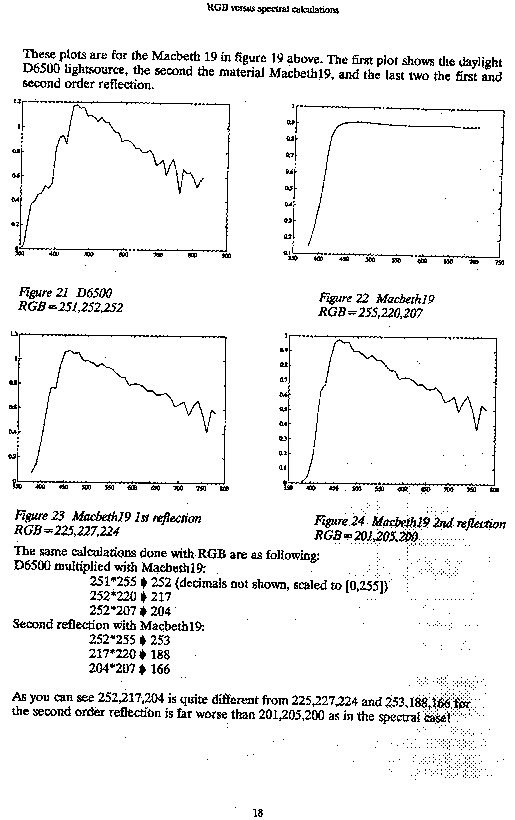

    Please note that the colors in the jpeg image is not exactly the RGB values above due to image compression. But rest assured that the visual impact is correct, the difference can in some instances be very severe as seen above. 13

    By clearly writing "The text is Copyright (c) 1991 by Clas Tegenfeldt" you may use it, spread it, refer to it, or make citations from it. Do not make local copies on the web but please feel free to make links to this page.
